CAM PROFILE GASKETS
Custom Kammprofile Gaskets

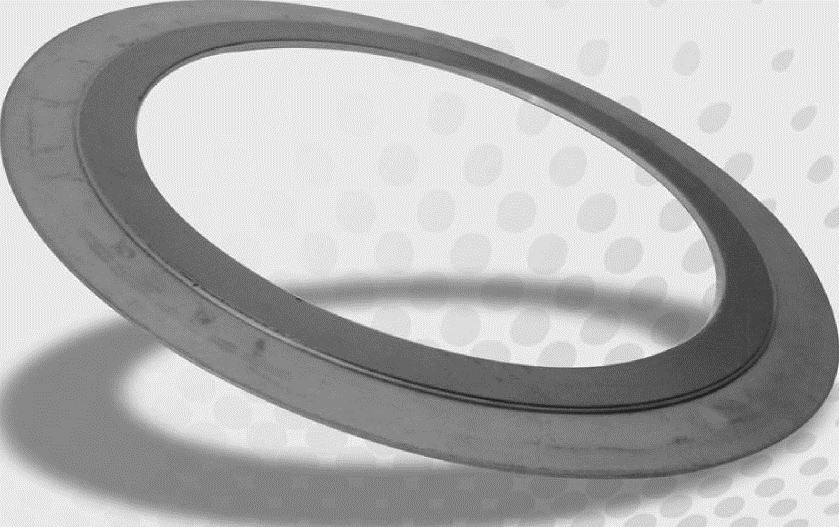

Kammprofile gasket consists of a concentrically serrated solid metal core with a soft conformable sealing layer bonded to each face. The layer can be expanded graphite, ptfe, asbestos free gasket sheeting material or some soft metal.
It features excellent compressibility and good recovery characteristics. The gasket mainly suits for vacuum and extremely high pressure applications. It can an be refurbished and reused and has better leak tightness than spiral wound gaskets.
It is the ideal replacement for equipment applications where standard spiral wound gaskets, double jacketed gasket, and corrugated metallic gaskets are commonly used.
It improves performance at low seating stresses and particularly suits applications where high temperatures, pressures, and fluctuating conditions are encountered.
MRO MASTER Kammprofile gasket basic style
the basic gasket without the inner and outer ring.
MRO MASTER Kammprofile gasket with the integral outer ring
It is with a machined centering ring that ensures optimum gasket positioning between the bolts.
MRO MASTER Kammprofile gasket with the loose outer ring
This type of gasket suits nominal pipe size and pressure class raised face flanges.
| Material | Thick (mm) | Density(g/cm3) | Hardness(HB) | Temperature(°C) |
| CS/SoftIron | 2 | 7.8 | 90~120 | -60°C~+500 |
| SS304,SS304L | 3 | 7.85 | 130~180 | -250°C~+550 |
| SS316,SS316L | 4 | 7.85 | 130~180 | -100°C~+550 |
